HDMI compliance is fundamentally a trademark and licensing requirement—not just a technical checkbox. Under the HDMI Licensing Administrator (HDMI LA) policy:
Only authorized HDMI Adopters may use the HDMI name and logo.
Products must pass compliance testing at an Authorized Test Center (ATC) before bearing HDMI branding.
US Customs & Border Protection (CBP) cooperates with HDMI LA to detain or destroy infringing goods.

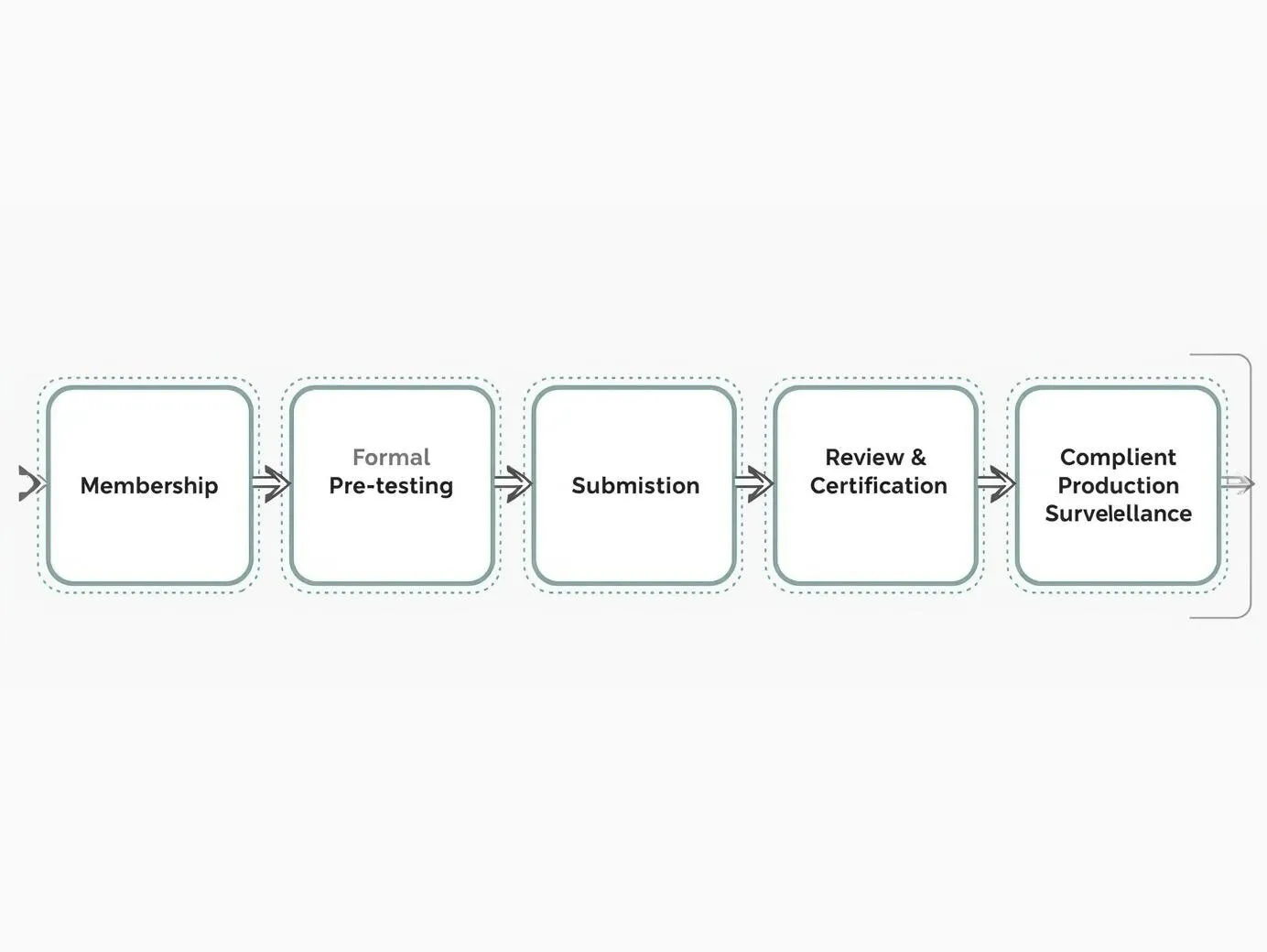

Recommended flowchart caption: Membership → Pre-testing → Formal Submission → Review & Certification → Compliant Production & Market Surveillance
Register on HDMI LA as an Adopter.
Choose plan: Standard ($10,000/year) or Low Volume ($5,000/year; ≤5,000 units/year; may include per-unit admin fees).
Complete HDCP membership and submit business licenses.
Typical HDMI LA review: 3–5 business days.
Pre-test at an ATC to raise first-pass success:
Electrical: eye diagram, clock jitter ≤ 0.15 UI, impedance.
Protocol: EDID, HDCP 2.3, CEC.
Interoperability: cross-brand checks (Sony/LG/Samsung, etc.).
Fix issues (e.g., EDID anomalies, FRL timing, screen tearing) before formal submission.
Samples: ≥2 near-production units (one with HDCP disabled for protocol tests).
Scope: signal integrity, protocol consistency, video (e.g., 8K@60, HDR10+), audio (eARC, latency ≤ 2 ms).
For HDMI 2.2 devices: verify 12K@120 capability and FRL link reliability (failure rate ≤ 1%).
Cycle: cables ≈ 5–10 days; complex devices (e.g., 8K/12K TVs) ≈ 10–15 days.
ATC submits reports to HDMI LA → review ~ 3 business days.
On approval, you receive the Compliance Certificate (unique ID) and logo usage rights.
Royalty reporting & payment (typical guide: ~$0.15/unit; can drop to ~$0.05 with proper logo usage—varies by policy).
Trademark rules (e.g., minimum logo size ≈ 3 mm on product/packaging).
HDMI LA conducts market checks; violations risk membership suspension, port seizures, and platform takedowns.
In 2025, the HDMI Forum released HDMI 2.2 with major impacts on testing and product design:
| Dimension | HDMI 2.2 Requirement (2025) |
|---|---|
| Bandwidth & Cables | Up to 96 Gbps; new “Ultra96 HDMI Cable” category with mandatory certification label. |
| Resolutions / Refresh Rates | Support for 12K @120 Hz and 16K @60 Hz; uncompressed full-chroma formats for 8K/4K. |
| New Protocol | Latency Indication Protocol (LIP) for accurate A/V sync across device chains. |
| Certification Additions | 12K@120 verification + FRL connection success rate test (failure ≤ 1%). |
Implication: Products that remain on legacy specs must re-design and re-test to market under HDMI 2.2.
| Phase | Duration (typical) |
|---|---|
| Membership & review | 1–2 weeks |
| Pre-testing & fixes | 2–4 weeks |
| Formal testing | 1–3 weeks |
| HDMI LA review & certificate | ~1 week |
| Total (smooth case) | 4–8 weeks (expedite possible to ~3–4 weeks) |
Do pre-testing at an ATC to catch PHY/FRL/CEC/HDCP issues early.
Leverage “Family Models” for cosmetic variants—avoid full re-tests when chipset/firmware are unchanged.
Adopt certified SoCs/transceivers and validated reference designs.
Keep firmware, EDID tables, and FRL parameters locked to the certified versions for production.
Never place the HDMI logo or market as “HDMI-compatible” without certification—CBP can detain/destroy goods; platforms may delist products; HDMI LA may fine and revoke membership.
Don’t ship with different firmware than the certified build—this can invalidate results and trigger re-testing.
Blue Asia Technology (Shenzhen) provides end-to-end HDMI compliance services:
Pre-testing & gap analysis (PHY, FRL, EDID/CEC, HDCP 2.3, eARC)
ATC testing coordination & project management
Troubleshooting & design guidance for first-pass success
Bundled EMC/Safety and multi-market approvals (CE, FCC, UKCA, KC, RCM, etc.)
king.guo@cblueasia.com | +86 135 3422 5140
Q1. How long does HDMI certification take?
Typically 4–8 weeks; expedited programs can complete in ~3–4 weeks.
Q2. Is certification truly mandatory in the US?
Yes—HDMI LA requires it for trademark use, and CBP enforces it at ports.
Q3. What changed in HDMI 2.2?
Bandwidth 96 Gbps, 12K@120/16K@60, LIP protocol, and stricter FRL reliability testing.
Q4. Can I extend certification to similar models?
Yes—use Family Models where hardware/firmware are unchanged.
Q5. What’s the most common fail point?
FRL link stability, EDID/CEC interoperability, and eye diagram/jitter failures without proper pre-testing.
